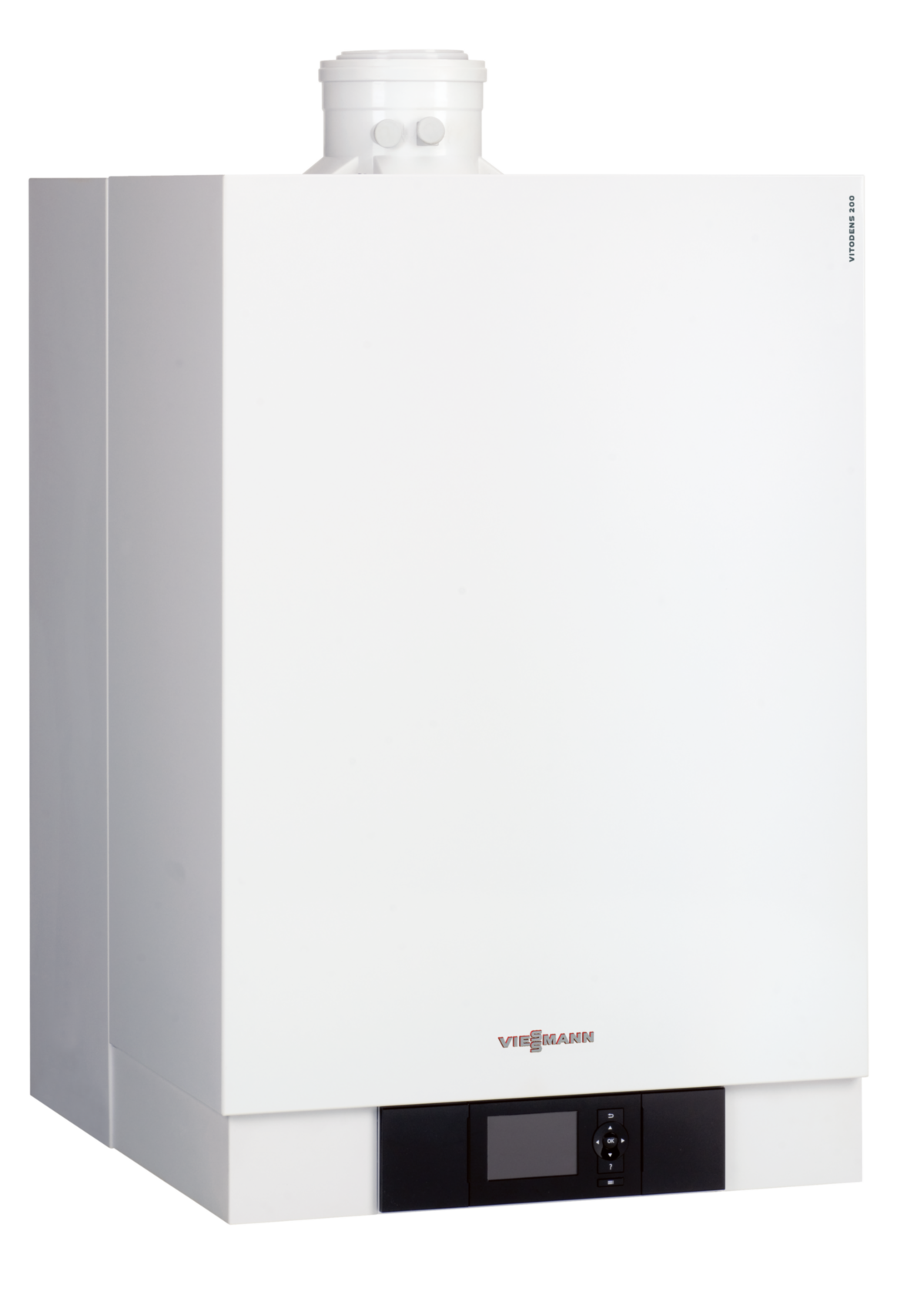

Vitodens 200-W B2HA

Wall-mounted condensing gas boilers, room-sealed type, with outputs up to 150 kW and electronic ignition
ENERGY CLASS
ENERGY CLASS
Α
Wi-Fi
Wi-Fi
Active

Why Choose It?

  • Cylindrical MatriX burner with a modulation ratio of up to 1:5 and a high-efficiency stainless steel spiral heat exchanger with titanium, delivering efficiencies of up to 109%.
  • Maximum energy savings through flue gas condensation and reduced chimney losses (flue gas outlet temperature only 10°C above the supply water temperature), ensuring fuel savings of at least 25%.
  • Lambda Pro Control sensor, which continuously adjusts the air-to-fuel ratio to maintain optimal combustion conditions.
  • Operating pressure: 4 bar for models up to 99 kW, and 6 bar for the 120 kW and 150 kW models.
  • Vitotronic electronic controllers with large displays for continuous system control and constant supply temperature regulation, either based on indoor temperature (100 HC1B) or outdoor temperature compensation (200 HO1B).
  • Very low emissions of pollutants and NOx, thanks to the MatriX burner technology, well below the limits required for “Blue Angel” environmental certification.
  • Exceptionally quiet operation.
  • The stainless steel heat exchanger features extra-wide water passages, ensuring high reliability and maximum service life.
Contact us About this Product

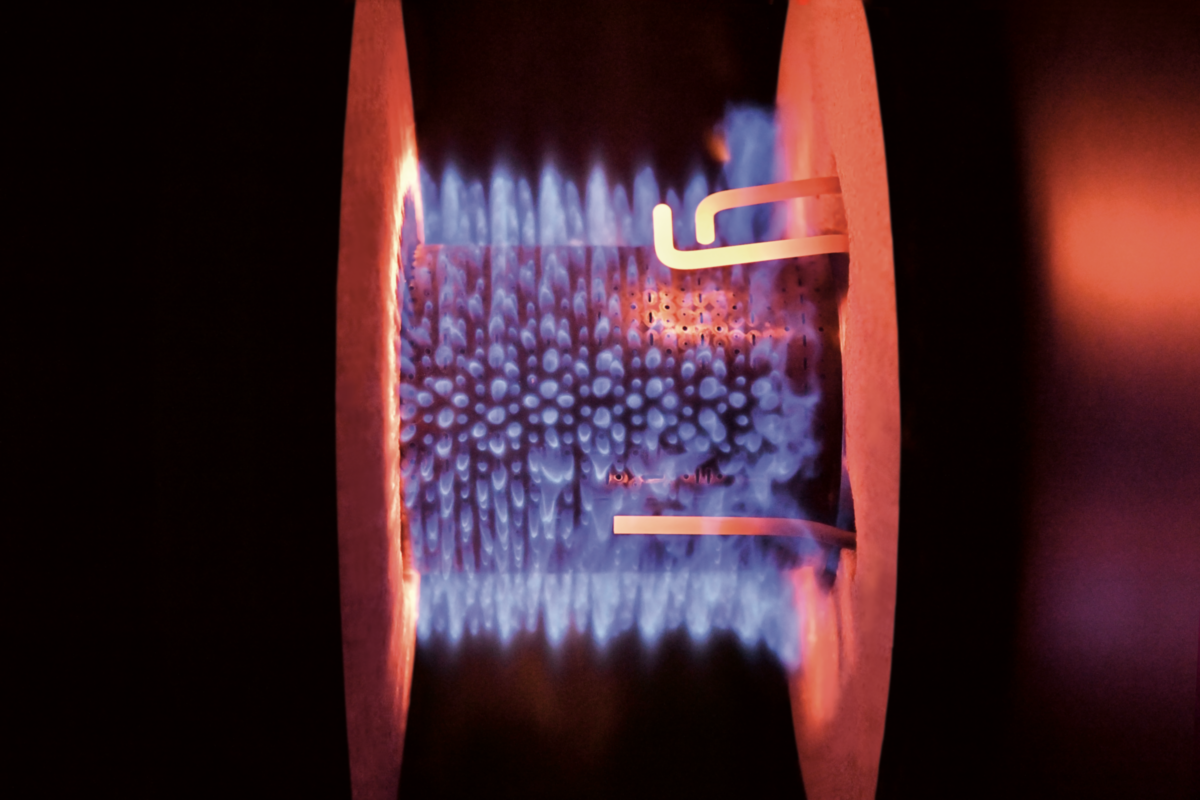

MatriX-Plus burner

Among the benefits of the MatriX-Plus burner are its efficient operation, quiet running and low emissions. The special stainless steel MatriX surface is resistant to high temperatures, which ensures reliable performance and a long service life.

Stainless steel Inox-Radial: efficient and durable

Stainless steel makes all the difference. The corrosion-resistant stainless steel Inox-Radial heat exchanger is at the heart of the Vitodens 050-W. It converts the consumed energy into heat very efficiently. In addition, the particularly durable, high grade stainless steel ensures reliability.

Easy operation with optional remote control

The heating water and DHW temperatures can be set quickly with the user friendly buttons. Operating states and temperatures are shown on the digital display screen.

ViCare thermostat: convenient individual room control

By hooking up the high quality ViCare thermostat developed for use with Viessmann heating systems, the room temperature can be conveniently controlled via the app. In addition, the boiler water temperature is automatically matched to the heat demand, which saves energy and extends service life.

Silent Operation

Ideal for installation in residential properties, thanks to its quiet operation and compact design down to 40 dB.

Low installed height

Low installed height for an easier replacement of old boilers.

Self-Diagnosis System

Advanced self-diagnostic system for complete unit monitoring and control.
